BWG Photovoltaic Grid-connected Cabinet

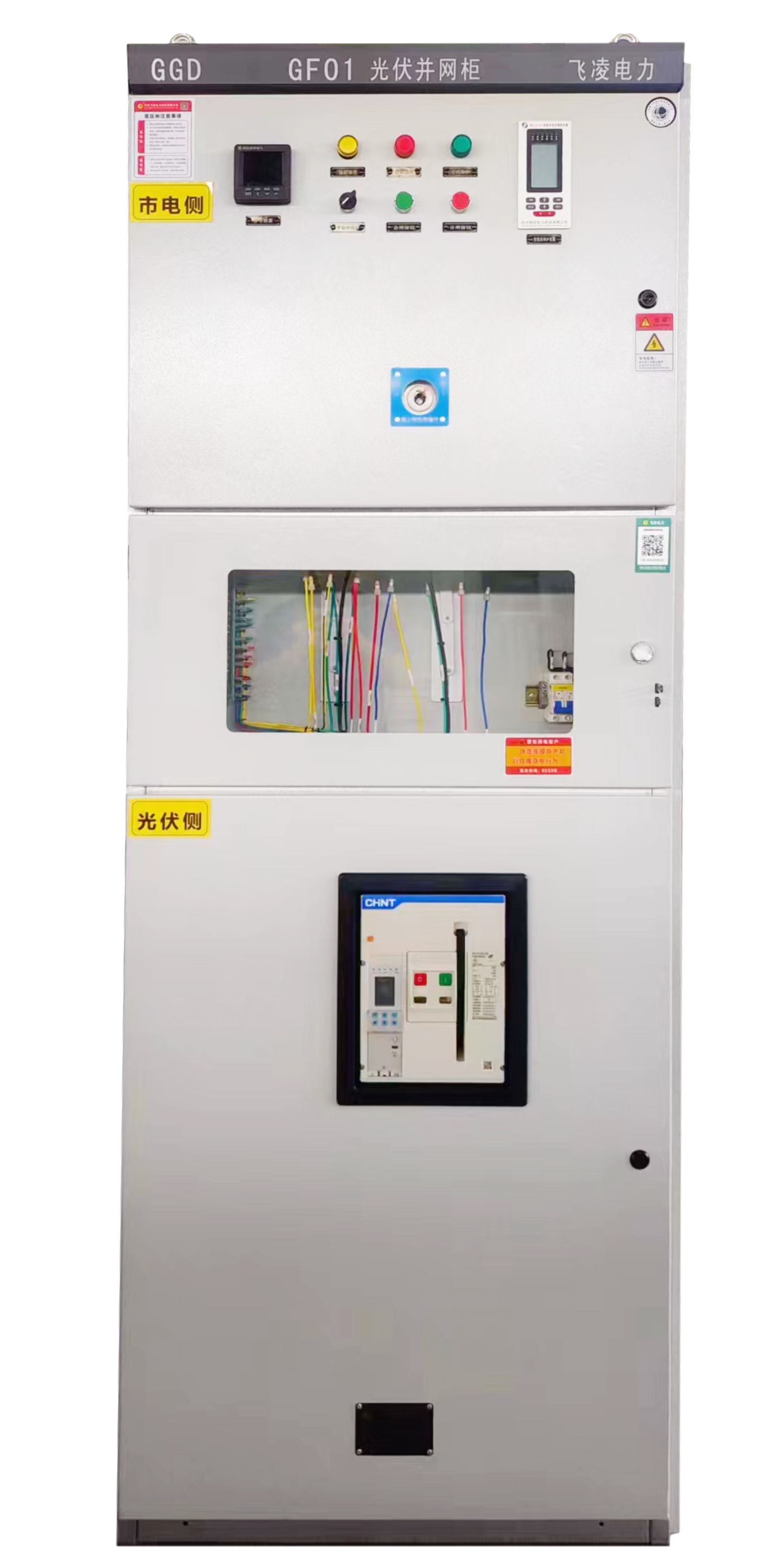

Picture show
Overview
The product is mainly used in 100KW ~ 2000KW high-power industrial and commercial photovoltaic grid-connected power generation system, which is connected in series between grid-connected inverter (or AC combiner box) and power grid. The product has a series of protection such as anti-islanding protection, voltage failure trip, power grid low voltage, power grid overvoltage, input lightning protection, system overcurrent, power grid isolation, etc. The multi-function meter display and fault status indication make the system running status clear at a glance, products through the industry standard CCC certification, CE certification, IS09001 quality management system certification.
Product Details
Main features
Reserve the installation location of metering meters and collectors; Metering meters can be sealed with windows and lead (anti-theft); The integrated design concept of the product, the power distribution part is completely isolated from the metering part, reducing electromagnetic interference, photovoltaic special plastic case reclosing circuit breaker and universal frame circuit breaker (optional), with more reliable performance; It can be equipped with online power quality monitoring, anti-islanding protection device, fault disconnection device, etc. Outdoor and indoor installation are optional, installation is more convenient.
Support special requirements and function customization.
Technical parameters
Product Model | BWG |
Number of inverter input | Road 1~5 (supporting AC junction box recommended above) |
Number of grid-connected output circuits | 1 road |
Grid connection requirements | Three-phase grid-connected cabinet |
Grid-connected voltage | AC:380V~AC:500V |
Switch brand (optional) | Delixi, Chint, Changshu, Liangxin, ABB, Schneider |
Protection function | |
Short circuit protection | There are |
Overload protection | There are |
Lightning protection | Yes (nominal current: In:20KA,Imax:40KA, Up≤ 4kV) |
Isolation protection (visual breakpoint) | Yes (knife switch/isolating switch) |
Over and under voltage protection | There are |
automatic reclosing | There are |
Panel manual opening and closing | There are |
Optional function | 1. Online power quality monitor; (optional) 2. Anti-islanding protection device; (optional) 3. Fault disarrangement device; (optional) |
Grid-connected switch | |
Plastic case reclosing (100A ~ 800A)(optional) | 1. Automatic tripping (0~10S delay tripping time is adjustable) when the power grid is cut off or the bias voltage is> 20%; 2. Automatic closing when the power grid returns to normal; 3. Manual operation and automatic operation can be switched; 4: phase loss protection, zero break protection 5: Check pressure closing |
Universal frame circuit breaker (200A ~ 4000A)(optional) | 1. Automatic tripping (0~10S delay tripping time is adjustable) when the power grid is cut off or the bias voltage is> 20%; 2. Automatic closing when the power grid returns to normal; 3. Manual operation and automatic operation can be switched; 4: phase loss protection, zero break protection 5: Check pressure closing |
Environment applicable | |
Temperature and humidity | Operating temperature:-25 to +60 ℃ Storage temperature:-40 to +70 ℃ Humidity: 0-90% No frost Non-corrosive gas places (if any, please specify) |
Use Altitude | ≤2000M |
regular parameters | |
Material of cabinet body | Cold-rolled plate plastic spraying, stainless steel |
Place of use | Indoor type (customizable outdoor type) |
Cabinet type | Distribution warehouse, metering warehouse, transformer warehouse and isolating switch warehouse |
Installation method | Floor vertical installation |
Cabinet size (depth * width * height) | 600mm * 800mm * 2200mm/800mm * 800mm * 2200mm (customizable) |
